產品簡介

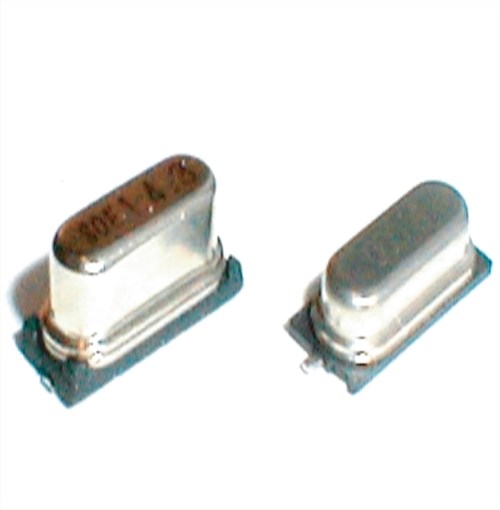

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ,美國富通晶振,進口石英晶振,大尺寸晶振,石英貼片晶振,水晶振動子,石英晶體諧振器,12MHZ無源晶振,SMD晶振,尺寸10.3*3.8mm,頻率12MHZ,負載16pF,工作溫度-40~+85°C,無鉛環保晶振,低成本晶振,低損耗晶振,高性能晶振,高質量晶振,微處理器晶體,蜂窩電話晶振,無線局域網晶振,藍牙晶振,室外基站晶振.

產品詳情

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ特點:

符合RoHS標準（無鉛），薄型表面安裝封裝

AT切割晶體，出色的時效性，擴展的溫度范圍

行業標準SMD晶振封裝

低成本、流行的微處理器晶體

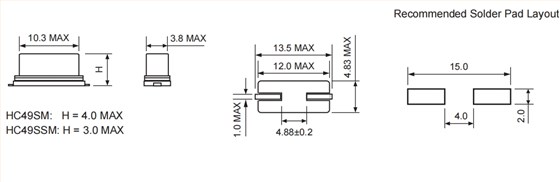

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ 參數表

Frequency Range			12.000 MHz
Resonance Mode			1 = Fundamental (3.5 to 36 MHz);3 = 3rd Overtone (27 to 70 MHz)
Package Option			HC49SM = 4.0 mm Height;HC49SSM = 3.0 mm Height
Calibration Tolerance @25°C			A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C			100 = ±100 ppm;50 = ±50 ppm;30 = ±30 ppm
Temperature Range			A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Crystal Aging			±5 ppm / year Maximum
Storage Temperature			-55°C to 125°C
Load Capacitance (CL)			CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance			7 pF Maximum
Drive Level			0.1 mW Typical, 1 mW Maximum
