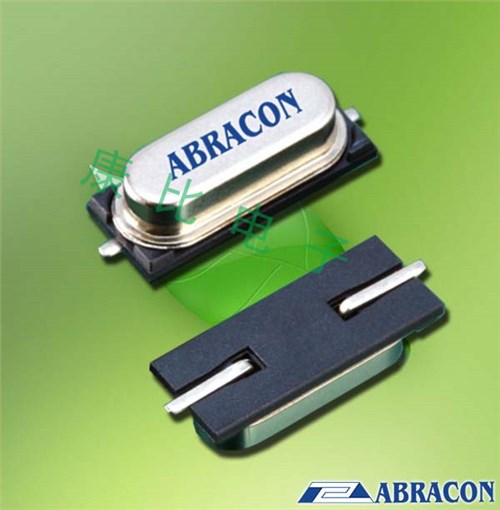

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABLS系列，編碼為：ABLS-12.000MHZ-20-B4Y-T，頻率為：12.000MHz，頻率穩定性：±30ppm，頻率容差：±30ppm，負載電容：20pF，工作溫度范圍：-20℃至+70℃，是一款小體積晶振尺寸：11.5x4.7x4.2mm封裝，兩腳貼片晶振，石英晶振，石英晶體諧振器，SMD晶體，無源晶振，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。應用于：計算機晶振、調制解調器、微處理器晶振，無線應用程序。
12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振，產品特點：
●適用于RoHS回流
●低輪廓石英晶體諧振器
●具有緊密的穩定性和擴展的溫度范圍

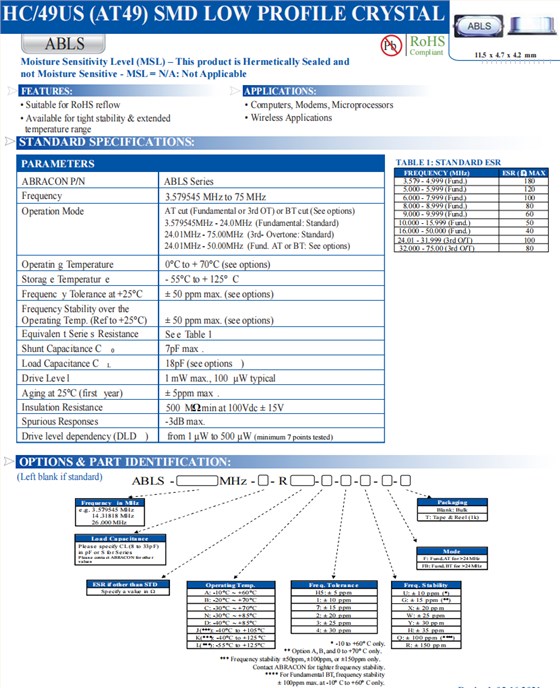

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振,參數表
| ABRACON P/N | ABLS Series |
| Frequency | 12 MHz |
| Operation Mode | AT cut (Fundamental or 3rd OT) or BT cut (See options) |
| 3.579545MHz - 24.0MHz (Fundamental: Standard) | |
| 24.01MHz - 75.00MHz (3rd- Overtone: Standard) | |
| 24.01MHz - 50.00MHz (Fund. AT or BT: See options) | |
| Operatin g Temperature | 0°C to + 70°C (see options) |
| Storag e Temperatur e | - 55°C to + 125° C |
| Frequenc y Tolerance at +25°C | ± 50 ppm max. (see options) |
| Frequency Stability over the | ± 50 ppm max. (see options) |
| Operating Temp. (Ref to +25°C) | |
| Equivalen t Serie s Resistance | See Table 1 |
| Shunt Capacitance C0 | 7pF max |
| Load Capacitance CL | 18pF (see options ) |
| Drive Leve l | 1 mW max., 100 μW typical |
| Aging at 25°C (first year) | ± 5ppm max . |
| Insulation Resistance | 500 MΩ min at 100Vdc ± 15V |
| Spurious Responses | -3dB max |
| Drive level dependency (DLD ) | from 1 μW to 500 μW(minimum 7 points tested) |

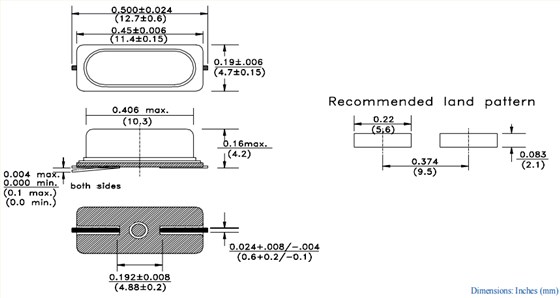

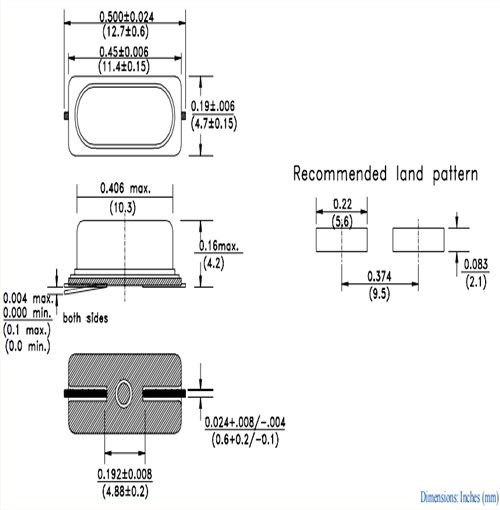

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 長度 | 寬度 | 高度 |
| ABLS-10.000MHZ-16-A-4-H-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-20-B-3-H-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-20-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-B2-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-B4-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-B4Y-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-D-3-Y-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-K4T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.000MHZ-L4Q-T | Abracon晶振 | ABLS | 10 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.240MHZ-B4-T | Abracon晶振 | ABLS | 10.24 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.72044MHZ-10-D4Y-T | Abracon晶振 | ABLS | 10.72044 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-10.7477MHZ-10-D4Y-T | Abracon晶振 | ABLS | 10.7477 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.000MHZ-D-3-Y-T | Abracon晶振 | ABLS | 11 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.000MHZ-D-4-Y-T | Abracon晶振 | ABLS | 11 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-20-B-3-H-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-20-B-4-H-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-20-B-4-Y-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-20-L-4-Q-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-32-B-4-Y-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-B2-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-B4-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-D-4-H-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-K4T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-L4Q-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-11.0592MHZ-T | Abracon晶振 | ABLS | 11.0592 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-16-A-4-H-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-20-B-3-H-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-20-B4Y-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-20-D-3-H-T | 貼片晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-20-D-4-H-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-30-4Y-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-30-A-4-H-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-32-B-4-Y-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-B-4-Y-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-B2-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-B4-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-B4H-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-D4Y-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-K4T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.000MHZ-L4Q-T | Abracon晶振 | ABLS | 12 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.11876MHZ-10-D4Y-T | Abracon晶振 | ABLS | 12.11876 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.1496MHZ-10-D4Y-T | Abracon晶振 | ABLS | 12.1496 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.1875MHZ-10-R20-D-T | Abracon晶振 | ABLS | 12.1875 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-20-B-3-H-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-20-B-4-Y-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-20-L-4-Q-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-B2-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-B4-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-D-3-Y-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-D-4-Y-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-K4T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.288MHZ-L4Q-T | Abracon晶振 | ABLS | 12.288 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-12.98883MHZ-10-D4Y-T | Abracon晶振 | ABLS | 12.98883 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.000MHZ-B4-T | Abracon晶振 | ABLS | 13 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.000MHZ-K4T | Abracon晶振 | ABLS | 13 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.000MHZ-L4Q-T | Abracon晶振 | ABLS | 13 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.02187MHZ-10-D4Y-T | Abracon晶振 | ABLS | 13.02187 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.02519MHZ-10-K4Q-T | Abracon晶振 | ABLS | 13.02519 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.0625MHZ-10-K4Q-T | Abracon晶振 | ABLS | 13.0625 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.0625MHZ-10-R20-D-T | Abracon晶振 | ABLS | 13.0625 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.225625MHZ-A2Y-T | Abracon晶振 | ABLS | 13.225625 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.262250MHZ-10-J4Y-T | Abracon晶振 | ABLS | 13.26225 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.48352MHZ-10-D4Y-T | Abracon晶振 | ABLS | 13.48352 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.4916MHZ-10-R20-D-T | Abracon晶振 | ABLS | 13.4916 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.500MHZ-B4-T | Abracon晶振 | ABLS | 13.5 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.5178MHZ-10-D4Y-T | Abracon晶振 | ABLS | 13.5178 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.52127MHZ-10-D4Y-T | Abracon晶振 | ABLS | 13.52127 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.52127MHZ-10-J-4Q-T | Abracon晶振 | ABLS | 13.52127 MHz | 11.4mm | 4.7mm | 4.2mm |
| ABLS-13.54856MHZ-10-J4Y-T | Abracon晶振 | ABLS | 13.54856 MHz | 11.4mm | 4.7mm | 4.2mm |
