151-25.000M-SR-25HR-VS,151系列插件晶振,25MHZ,Oscilent電話機晶振,奧斯康利進口晶振,歐美無源晶振,無源插件晶振,25MHZ石英晶振,大尺寸晶振,石英振動子,插件晶振,無源諧振器,尺寸11.0*3.8mm,頻率25MHZ,低老化晶振,高可靠晶振,無鉛環保晶振,電話機晶振,微處理器晶振,蜂窩電話晶振,無線局域網晶振,網絡應用晶振.
151-25.000M-SR-25HR-VS,151系列插件晶振,25MHZ,Oscilent電話機晶振特點:
行業標準套裝
寬頻率范圍,低調
無源晶體卓越的可靠性/老化,“AT Strip”坯料技術
經濟高效,RoHs/無鉛合規

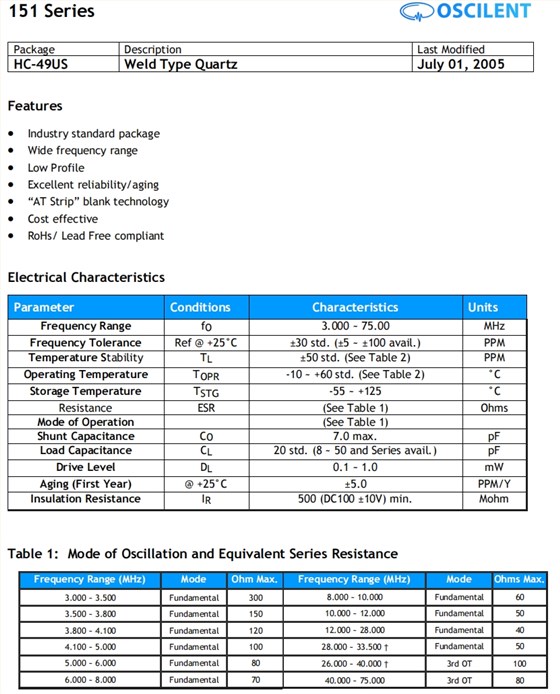

151-25.000M-SR-25HR-VS,151系列插件晶振,25MHZ,Oscilent電話機晶振 參數表
| Parameter | Conditions | Characteristics | Units | |||||||||||||||||
| Frequency Range | fO | 25.00 | MHz | |||||||||||||||||
| Frequency Tolerance | Ref @ +25°C | ±30 std. (±5 ~ ±100 avail.) | PPM | |||||||||||||||||

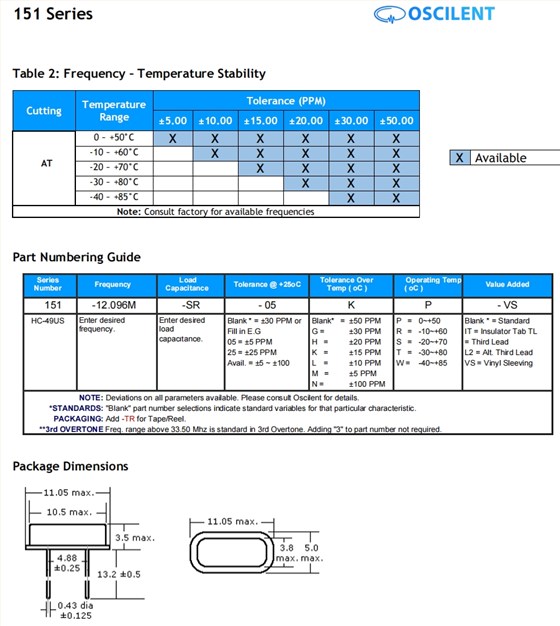

| Temperature Stability | TL | ±50 std. (See Table 2) | PPM | |||||||||||||||||
| Operating Temperature | TOPR | -10 ~ +60 std. (See Table 2) | ℃ | |||||||||||||||||
| Storage Temperature | TSTG | -55 ~ +125 | ℃ | |||||||||||||||||
| Resistance | ESR | (See Table 1) | Ohms | |||||||||||||||||
| Mode of Operation | (See Table 1) | |||||||||||||||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||||||||||||
| Load Capacitance | CL | 20 std. (8 ~ 50 and Series avail.) | pF | |||||||||||||||||
| Drive Level | DL | 0.1 ~ 1.0 | mW | |||||||||||||||||
| Aging (First Year) | @ +25℃ | ±5.0 | PPM/Y | |||||||||||||||||
| Insulation Resistance | IR | 500 (DC100 ±10V) min. | Mohm | |||||||||||||||||

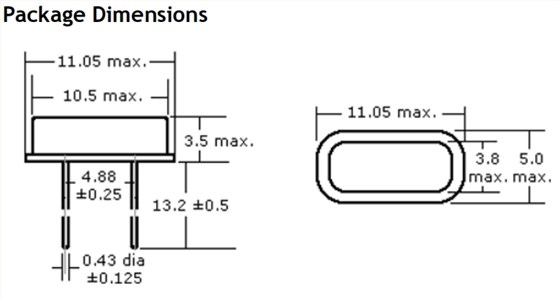

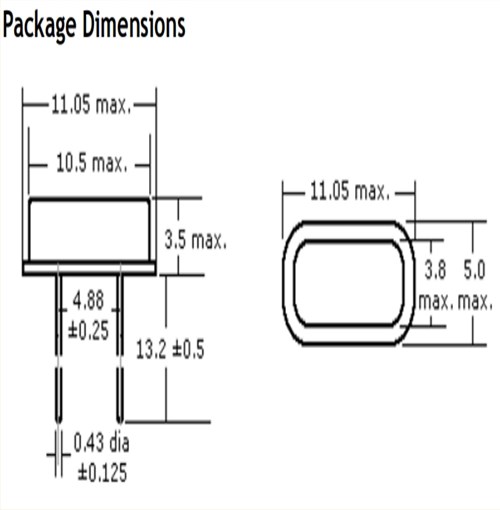

151-25.000M-SR-25HR-VS,151系列插件晶振,25MHZ,Oscilent電話機晶振 尺寸圖
