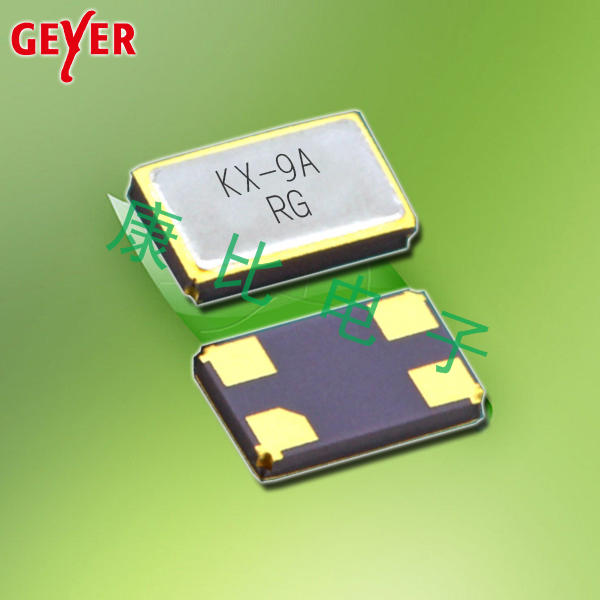

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振

頻率：24.576MHZ

尺寸：5.0x3.2mm

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振，尺寸5.0x3.2mm，頻率24.576MHZ，丹麥格耶晶振，格耶進口晶振，石英振動子，SMD晶振，貼片石英晶振，無源晶振，石英晶體諧振器，貼片無源晶振，四腳貼片晶振，無源石英晶振，輕薄型晶振，5032mm貼片晶振，環保晶振，低耗能晶振，低功耗晶振，高質量晶振，高性能晶振，低損耗晶振，智能手機晶振，游戲設備晶振，藍牙耳機晶振，娛樂設備晶振，可視化電話晶振，物聯網晶振，儀器儀表晶振，照相機專用晶振，具有低耗能高性能的特點.

無源晶振產品常用于各大應用之間，比較適合用于智能手機，游戲設備，藍牙耳機，娛樂設備，可視化電話，物聯網，儀器儀表，照相機等應用.12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振.

訂購熱線：0755-27876201
QQ咨詢 點擊這里給我發消息

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振，尺寸5.0x3.2mm，頻率24.576MHZ，丹麥格耶晶振，格耶進口晶振，石英振動子，SMD晶振，貼片石英晶振，無源晶振，石英晶體諧振器，貼片無源晶振，四腳貼片晶振，無源石英晶振，輕薄型晶振，5032mm貼片晶振，環保晶振，低耗能晶振，低功耗晶振，高質量晶振，高性能晶振，低損耗晶振，智能手機晶振，游戲設備晶振，藍牙耳機晶振，娛樂設備晶振，可視化電話晶振，物聯網晶振，儀器儀表晶振，照相機專用晶振，具有低耗能高性能的特點.

無源晶振產品常用于各大應用之間，比較適合用于智能手機，游戲設備，藍牙耳機，娛樂設備，可視化電話，物聯網，儀器儀表，照相機等應用.12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振.

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振       參數表

part no. 12.xxxxx
model KX - 9AT
frequency range 24.576 MHz
mode fundamental, 3rd overtone; 5th overtone
operating temperature standard -20° ~ +70°C
available -40° ~ +85°C (=KX-9AT); -40° ~ +105°C (=KX-9AE)
frequency tolerance at +25°C standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance
at -20° ~ +70°C; -40° ~ +85°C
-40° ~ +105°C 		standard ±50 ppm; available ±10 ~ ±100 ppm
standard ±120 ppm; available ±30 ~ ±120 ppm
load capacitance CL standard 16 pF; available 10 ~ 20 pF
series resistance R1 (ESR) max. fundamental 7.68  ~    7.99 MHz 330 Ohm
8.0    ~  12.0  MHz 100 Ohm
12.1    ~  16.0  MHz  80 Ohm
16.1    ~  20.0  MHz  60 Ohm
20.1    ~  50.0  MHz  40 Ohm
50.1    ~ 130.0  MHz  30 Ohm 		3rd overtone  70.0
5th overtone 120.0 		~ 300.0 MHz
~ 250.0 MHz 		80 Ohm
80 Ohm
aging at +25°C (first year) max. ±2 ppm
shunt capacitance C0 max. 5.0 pF
drive level max. 200 µW
contents of reel 1000 pcs.

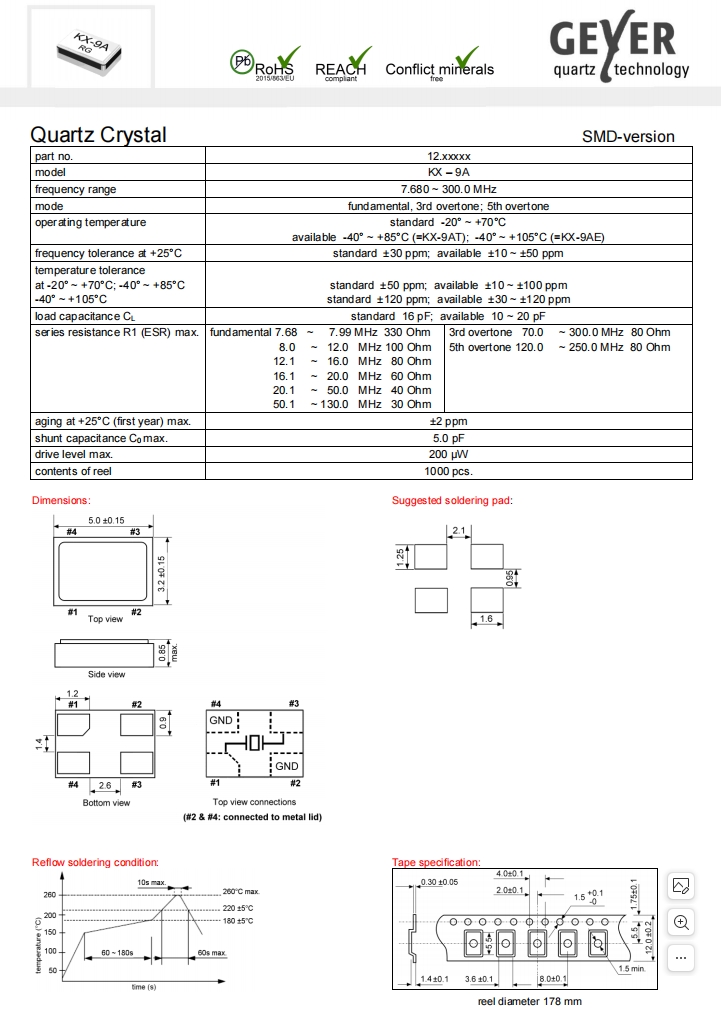

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振       尺寸圖

KX-9A

12.89288無源晶振,GeyerCrystal,KX-9AT游戲設備晶振

SMD晶振產品特性：

尺寸5.0x3.2mm晶體元件

頻率范圍7.680 ~ 300.0MHz

符合RoHS標準且無鉛

高質量高精度

KX-9A 1

Mfr Part # Mfr Description Series Frequency Frequency Stability Frequency Tolerance Load Capacitance
12.89078 Geyer晶振 Crystal 27.0Mhz SMD KX-9AT 16pF, KX-9AT 27 MHz ±150ppm ±30ppm 16pF
12.86517 Geyer晶振 Cystal 24.0Mhz 10pF SMD KX-6 24 MHz ±50ppm ±30ppm 10pF
12.84812 Geyer晶振 Crystal 25.0MHz 8pF SMD KX-4 25 MHz ±50ppm ±30ppm 8pF
12.88508 Geyer晶振 Crystal 24.0Mhz 12pF SMD KX-7T 24 MHz ±50ppm ±20ppm 12pF
12.88711 Geyer晶振 Crystal 25.0Mhz SMD KX-7T 12pF, KX-7T 25 MHz ±30ppm ±30ppm 12pF
12.85519 Geyer晶振 CYSTAL 20.0MHZ 8PF SMD KX-5T 20 MHz ±50ppm ±20ppm 8pF
12.89027 Geyer晶振 Crystal 25.0Mhz SMD KX-9A 16pF, KX-9A 25 MHz ±30ppm ±30ppm 16pF
12.85539 Geyer晶振 CYSTAL 40.0MHZ 8PF SMD KX-5T 48 MHz ±20ppm ±10ppm 12pF
12.88721 Geyer晶振 Crystal 16.0Mhz 12pF SMD KX-7T 16 MHz ±30ppm ±30ppm 12pF
12.88667 Geyer晶振 Crystal 25.0Mhz SMD KX-7 12pF, 4 KX-7 25 MHz ±50ppm ±30ppm 12pF
12.85517 Geyer晶振 CYSTAL 54.0MHZ 8PF SMD KX-5T 54 MHz ±100ppm ±30ppm 8pF
12.89017 Geyer晶振 Crystal 13.560Mhz SMD KX-9A 16pF KX-9A 13.56 MHz ±50ppm ±30ppm 16pF
12.89082 Geyer晶振 Crystal 26.0Mhz SMD KX-9AT 16pF, KX-9AT 26 MHz ±50ppm ±30ppm 16pF
12.60075 Geyer晶振 Cystal 30.0Mhz 8pF SMD KX-7 30 MHz ±50ppm ±30ppm 8pF
12.89155 Geyer晶振 Crystal 32.0Mhz SMD KX-9AT 16pF, KX-9AT 32 MHz ±30ppm ±30ppm 16pF
12.88522 Geyer晶振 Crystal 11.059200Mhz 12pF SMD KX-7T 11.0592 MHz ±50ppm ±30ppm 12pF
12.88752 Geyer晶振 Crystal 10.0Mhz 12pF SMD KX-7 10 MHz ±50ppm ±30ppm 12pF
12.85569 Geyer晶振 CYSTAL 27.120MHZ 8PF SMD KX-5T 27.12 MHz ±15ppm ±10ppm 8pF
12.88565 Geyer晶振 Crystal 8.0Mhz 12pF SMD KX-7E 8 MHz ±50ppm ±30ppm 12pF
12.85538 Geyer晶振 CYSTAL 24.5760MHZ 8PF SMD KX-5T 24.576 MHz ±100ppm ±30ppm 8pF
12.86533 Geyer晶振 Cystal 26.0Mhz 10pF SMD KX-6T 26 MHz ±100ppm ±30ppm 10pF
12.89209 Geyer晶振 Crystal 16.0Mhz SMD KX-9AE 20pF, KX-9AE 16 MHz ±50ppm ±30ppm 20pF
12.8652 Geyer晶振 Cystal 27.0Mhz 10pF SMD KX-6 27 MHz ±50ppm ±30ppm 10pF
12.86574 GEYER Crystal Crystal 27.0Mhz 8pF SMD KX-6F 27 MHz ±150ppm ±30ppm 8pF
12.85541 Geyer晶振 CYSTAL 30.0MHZ 8PF SMD KX-5 30 MHz ±30ppm ±30ppm 8pF
12.84818 Geyer晶振 Crystal 24.0MHz 8pF SMD KX-4 24 MHz ±50ppm ±30ppm 8pF
12.86527 Geyer晶振 Cystal 20.0Mhz 10pF SMD KX-6T 20 MHz ±15ppm ±10ppm 10pF
12.85534 Geyer晶振 CYSTAL 27.0MHZ 8PF SMD KX-5T 27 MHz ±50ppm ±30ppm 8pF
12.86505 Geyer晶振 Cystal 26.0Mhz 10pF SMD KX-6 26 MHz ±50ppm ±30ppm 10pF
12.60024 Geyer晶振 Cystal 27.0Mhz 12pF SMD KX-7E 27 MHz ±100ppm ±30ppm 12pF
12.84803 Geyer晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±20ppm ±10ppm 8pF
12.85518 Geyer晶振 CYSTAL 20.0MHZ 8PF SMD KX-5E 20 MHz ±50ppm ±30ppm 8pF
12.8873 Geyer晶振 Crystal 26.0Mhz 12pF SMD KX-7T 26 MHz ±50ppm ±30ppm 12pF
12.86556 Geyer晶振 Crystal 40.0Mhz 8pF SMD KX-6T 40 MHz ±20ppm ±10ppm 8pF
12.88643 Geyer晶振 Crystal 14.3181800Mhz 12pF SMD KX-7T 14.31818 MHz ±50ppm ±30ppm 12pF
12.86511 Geyer晶振 Crystal 18.4320Mhz 10pF SMD KX-6 18.432 MHz ±50ppm ±30ppm 10pF
12.88523 Geyer晶振 Crystal 40.0Mhz 12pF SMD KX-7F 40 MHz ±50ppm ±30ppm 12pF
12.89288 Geyer晶振 Crystal 24.5760Mhz SMD KX-9AT 20 KX-9AT 24.576 MHz ±30ppm ±20ppm 20pF
12.86536 Geyer晶振 Crystal 14.318180Mhz 10pF SMD KX-6 14.31818 MHz ±50ppm ±30ppm 10pF
12.89029 Geyer晶振 Crystal 27.0Mhz SMD KX-9A 16pF, KX-9A 27 MHz ±50ppm ±30ppm 16pF
12.88799 Geyer晶振 Crystal 12.0Mhz 10pF SMD KX-7 12 MHz ±30ppm ±30ppm 10pF
12.8481 Geyer晶振 Crystal 48.0MHz 8pF SMD KX-4 48 MHz ±50ppm ±30ppm 8pF
12.84814 Geyer晶振 Crystal 32.0MHz 8pF SMD KX-4 32 MHz ±15ppm ±10ppm 8pF
12.88756 Geyer晶振 Crystal 10.0Mhz 12pF SMD KX-7E 26 MHz ±50ppm ±10ppm 12pF
12.8556 Geyer晶振 CYSTAL 16.0MHZ 8PF SMD KX-5T 16 MHz ±30ppm ±30ppm 8pF
12.86561 Geyer晶振 Crystal 40.0Mhz 10pF SMD KX-6T 40 MHz ±20ppm ±10ppm 10pF
12.8877 Geyer晶振 Crystal 30.0Mhz 12pF SMD KX-7T 30 MHz ±10ppm ±10ppm 12pF
12.86564 Geyer晶振 Crystal 14.318180Mhz 10pF SMD KX-6T 14.31818 MHz ±100ppm ±30ppm 10pF
12.86592 Geyer晶振 Crystal 25.0Mhz SMD KX-6T 12pF, KX-6T 25 MHz ±20ppm ±10ppm 12pF
12.87159 Geyer晶振 CRYSTAL 32.7680kHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF
12.87163 Geyer晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327RT 32.768 kHz -0.036ppm ±20ppm 7pF
12.87151 Geyer晶振 CRYSTAL 32.7680kHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±30ppm 9pF
12.8717 Geyer晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327FT 32.768 kHz - ±20ppm 12.5pF
12.87148 Geyer晶振 CRYSTAL 32.7680KHZ 7PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 7pF
12.87106 Geyer晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327XST 32.768 kHz ±20ppm ±20ppm 7pF
12.8716 Geyer晶振 CYSTAL 32.7680KHZ 12.5PF SMD KX-327RT 32.768 kHz ±20ppm ±20ppm 12.5pF
12.87143 Geyer晶振 CRYSTAL 32.768KHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 9pF
12.84801 Geyer晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±50ppm ±30ppm 8pF
12.8718 Geyer晶振 Crystal 32.7680kHz 9pF SMD KX-327NHF 32.768 kHz -0.03ppm ±20ppm 9pF
12.87147 Geyer晶振 CRYSTAL 32.768KHz 7pF SMD KX-327NHT 32.768 kHz - ±10ppm 7pF
12.87081 Geyer晶振 CRYSTAL 32.768KHZ 6PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 6pF
12.87149 Geyer晶振 CRYSTAL 32.7680KHZ 9PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 9pF
12.87156 Geyer晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF
12.87154 Geyer晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF
12.87174 Geyer晶振 CRYSTAL 32.768KHz 7pF SMD KX-327FT 32.768 kHz -0.036ppm ±20ppm 7pF
12.87114 Geyer晶振 Cystal 32.7680Khz 12.5pF SMD KX-327ST 32.768 kHz -0.034ppm, ±0.006ppm ±20ppm 12.5pF
