KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振

返回列表 來源：*** 查看手機網址
掃一掃!KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振掃一掃!
 瀏覽：- 發布日期：2022-07-08 09:58:53【大 中 小】
分享到：

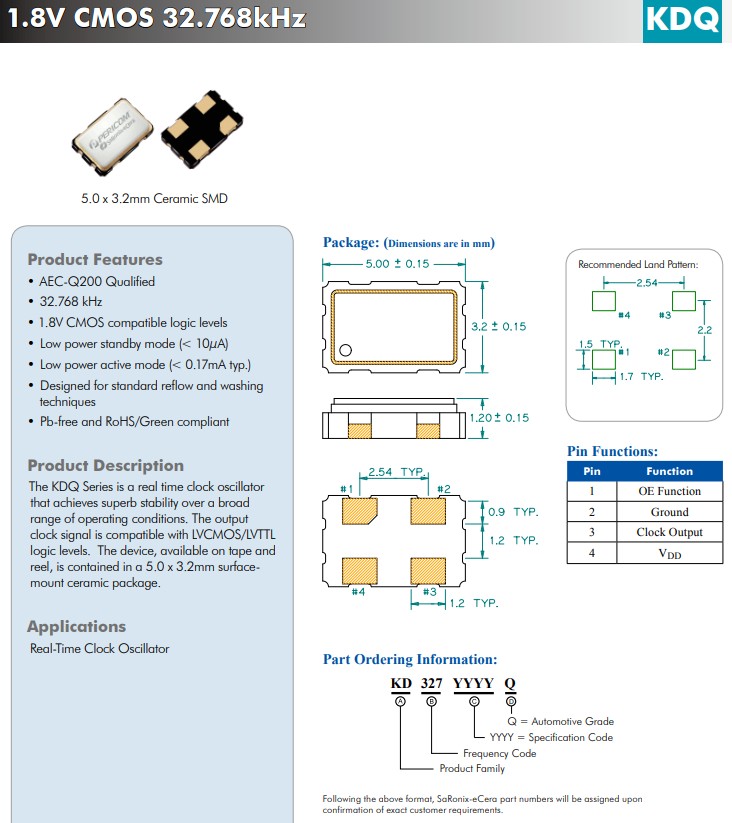

KDQ系列1.8V是一種實時時鐘晶體振蕩器，可在廣泛的工作條件下實現卓越的穩定性。小體積尺寸5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用5.0x3.2mm表面貼裝陶瓷封裝。

產品特點：
符合AEC-Q200標準
頻率：32.768k晶振
1.8V CMOS兼容邏輯電平
低功耗待機模式（< 10μA）
低功耗主動模式（< 0.17mA 典型值）
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用：實時時鐘振蕩器

KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振

UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KX2513G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
KX3211D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C

Product Parameters

Subfamily 32kHz XO
Product Series KDQ
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 32.768KHZ
Jitter RMS (ps) <1 ps RMS
Stability (PPM) 20 to 50
Package Size (mm) 3.2 x 2.5
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 1.8
Pads 4

KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振

產品參數：

亞科 32kHz XO
產品系列 KDQ
合規性（僅汽車支持PPAP）汽車
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 ps RMS
穩定性 20到50PPM
包裝尺寸 3.2x2.5mm有源晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4腳
應用：刀片服務器,基站,工控機,多功能打印機,機架服務器,存儲陣列,智能電網, DVD/藍光,安全, GPS , STB

1

FRSTB1027 Diodes Incorporated SaRonix-eCera™ FR 27MHz ±25ppm -20°C ~ 70°C
FRTELE016 Diodes Incorporated SaRonix-eCera™ FR 16.384MHz ±25ppm -20°C ~ 70°C
FRETHE025 Diodes Incorporated SaRonix-eCera™ FR 25MHz ±25ppm -20°C ~ 70°C
KX2013B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2013D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX2511A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX2513D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C

KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振

我們的32.768k晶體振蕩器 (XO) 具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器(XO)，尺寸僅為2.0x1.6mm（KM 系列）。KM 系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于10 µA）和最嚴格穩定性 (+/- 20 ppm) 的32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C

有源晶振需要電源，但不需要附加的電容。它內部含有起振器。通常接到CPU的一根引腳即可，有源晶振不需要DSP的內部振蕩器,信號質量好,比較穩定,而且連接方式相對簡單(主要是做好電源濾波,通常使用一個電容和電感構成的PI型濾波網絡,輸出端用一個小阻值的電阻過濾信號即可),不需要復雜的配置電路.有源晶振通常的用法:一腳懸空,二腳接地,三腳接輸出,四腳接電壓.KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振
