具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

返回列表 來源：*** 查看手機網址
掃一掃!具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振掃一掃!
 瀏覽：- 發布日期：2022-07-13 16:23:56【大 中 小】
分享到：

UF324/UF34 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。該系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、小體積晶振尺寸3.2x2.5mm有源晶振，2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
FRBST1061 Diodes Incorporated SaRonix-eCera™ FR 61.44MHz ±50ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
KM3270004 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm -40°C ~ 85°C
FK2500021 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FN4000159 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±50ppm -40°C ~ 85°C
FK0800003 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm -20°C ~ 70°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -40°C ~ 85°C
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -40°C ~ 85°C
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm -40°C ~ 85°C
具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

特征：
超低相位抖動
0.06ps典型值。0.08ps RMS最大值（12kHz至20MHz）
擴展溫度范圍高達125℃耐高溫晶振
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC時鐘生成
112G串行應用

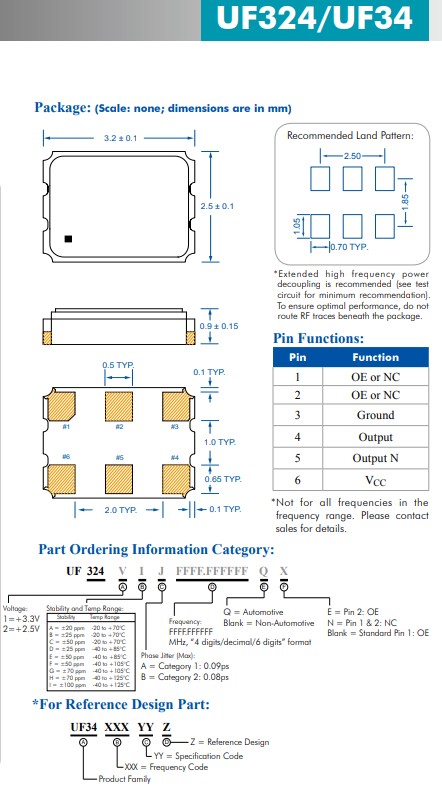

1

FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm -40°C ~ 85°C
FNSAS2075 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 75MHz ±50ppm -20°C ~ 70°C
FD6250012 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm -20°C ~ 70°C
KN3270028 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270032 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270031 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270042 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270022 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270036 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270032 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
KN3270033 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
KD3270034 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KX3211B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX3211C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX3211E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX3211G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3213B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX3213C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KN3270034 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C

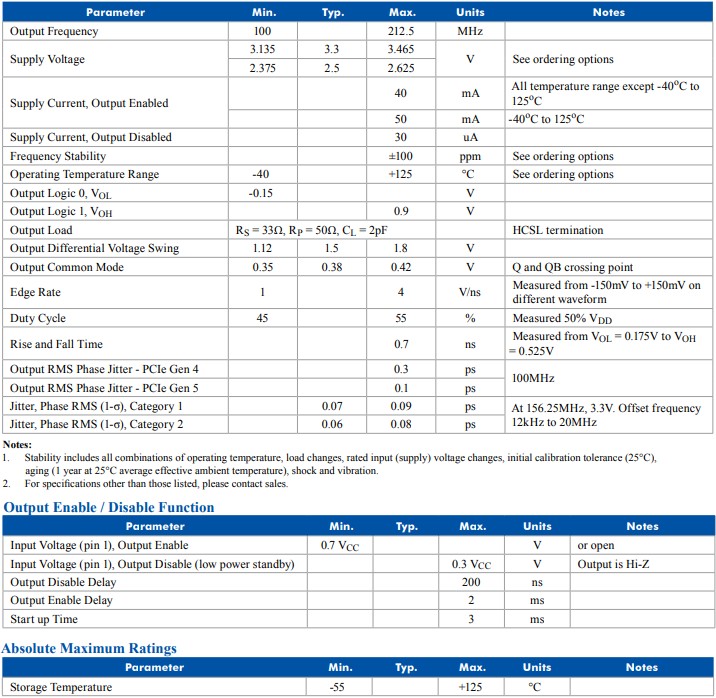

2

Product Specifications

Product Parameters

Stability (PPM) 20 to 100
Package Size (mm) 3.2 x 2.5 x 0.9
PkgType Ceramic Seam
Freq Range (MHz) 100 to 212.5
Jitter RMS (ps) 0.08 to 0.09
Output Logic HCSL
Supply Voltage (V) 3.3, 2.5
Pads 6
ProductSeries UF3

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

產品參數：

穩定性 (PPM) 20PPM到100PPM
包裝尺寸 3.2x2.5x0.9mm貼片晶振
包裝類型 陶瓷縫
頻率范圍 100MHz至212.5MHz
抖動均方根 0.08ps至0.09ps
輸出邏輯 HCSL
電源電壓 3.3V, 2.5V
墊 6腳
產品系列 UF3
KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C
KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C
KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C
KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -20°C ~ 70°C
KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C

最小尺寸的超低抖動晶體振蕩器(XO)，DIODES UF系列超低抖動，微型，晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活 設計需求。 有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及 2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

KK3270047 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KN3270035 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KK3270007 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270053 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KK3270041 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KK3270043 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
S1700C-20.0000 Diodes Incorporated SaRonix™ S1700 20MHz ±100ppm 0°C ~ 70°C
KK3270048 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KX3213H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX3213E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX3213A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3213D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX3213Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz - -
KX2511G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
NX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ NX 56MHz ±50ppm -20°C ~ 70°C
KX2511D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX2511Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz - -
NX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ NX 59MHz ±50ppm -40°C ~ 85°C
FRSONT019 Diodes Incorporated SaRonix-eCera™ FR 19.44MHz ±25ppm -20°C ~ 70°C
FRXDSL035 Diodes Incorporated SaRonix-eCera™ FR 35.328MHz ±25ppm -20°C ~ 70°C
FRSONT038 Diodes Incorporated SaRonix-eCera™ FR 38.88MHz ±25ppm -20°C ~ 70°C
KX2013C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO 貼片振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x 2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCI 5.0架構，系統，服務器和存儲系統，專業視頻設備，F(xiàn)PGA/ASIC參考時鐘，發電機

KX2013E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
NX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ NX 120MHz ±50ppm -20°C ~ 70°C
NX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ NX 25.001875MHz ±25ppm -40°C ~ 85°C
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb -30°C ~ 85°C
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb -30°C ~ 85°C
JT255CF0019.200000 Diodes Incorporated SaRonix-eCera™ JT 19.2MHz ±500ppb -30°C ~ 85°C
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb -30°C ~ 85°C
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb -30°C ~ 85°C
JT255CF0016.368000 Diodes Incorporated SaRonix-eCera™ JT 16.368MHz ±500ppb -30°C ~ 85°C
JT255CF0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -30°C ~ 85°C
NX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ NX 91.5MHz ±50ppm -40°C ~ 85°C
NX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ NX 70.656MHz ±25ppm -40°C ~ 85°C
NX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ NX 104MHz ±25ppm -40°C ~ 85°C
NX7021E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
SN10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
SNGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
LD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
LDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -20°C ~ 70°C
LDF550001 Diodes Incorporated SaRonix-eCera™ LD 155.52MHz ±25ppm -20°C ~ 70°C
PDF620004 Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
S1613B-27.0000 Diodes Incorporated SaRonix-eCera™ FN 27MHz ±50ppm -10°C ~ 70°C
KM3270002 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm -40°C ~ 85°C
KM3270003 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm -40°C ~ 85°C
PXA000010 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±50ppm -20°C ~ 70°C
PXA000010 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±50ppm -20°C ~ 70°C

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

零件號碼 包裹 輸出 電壓 振動 頻率 頻率穩定性
UF2521DA0100.000000 2.5x2.0mm LVPECL 3.3V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF2532DC0156.250000 2.5x2.0mm LVDS 2.5V 0.07ps 156.26MHz ±25ppm, -40 to +85℃
UF2542HC0100.000000 2.5x2.0mm HCSL 2.5V 0.07ps 100MHz ±70ppm, -40 to +125℃
UF3221DA0212.500000 3.2x2.5mm LVPECL 3.3V 0.09ps 212.5MHz ±25ppm, -40 to +85℃
UF3242DA0100.000000 3.2x2.5mm HCSL 2.5V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF3231FB0156.250000 3.2x2.5mm LVDS輸出晶振 3.3V 0.08ps 156.25MHz ±50ppm, -40 to +105℃
UF5022DA0100.000000 5.0x3.2mm LVPECL 2.5V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF5031DB0156.250000 5.0x3.2mm LVDS 3.3V 0.08ps 156.25MHz ±25ppm, -40 to +85℃

快速通道
pass + 快速通道
