松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器

返回列表 來源：*** 查看手機網址
掃一掃!松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器掃一掃!
 瀏覽：- 發布日期：2023-06-16 15:48:07【大 中 小】
分享到：

松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器，世界級領先供應商松圖公司，作為實力派供應商，總能開發令人驚喜的優質產品，產品具備卓越的穩定性能，低抖動低損耗的特點，其中主推OSC振蕩器編碼SQG32L2A381-8.000M-1500.000M，型號SQG32L是一款小尺寸晶振3.2X2.5，頻率為8.000M-1500.000M，SMD振蕩器，差分晶振，OSCILLATOR，腳位6PAD，支持輸出LVDS，抖動為1.5ps，電壓2.5V±5%，頻率穩定性±50ppm，工作溫度-30°C-+85°C。

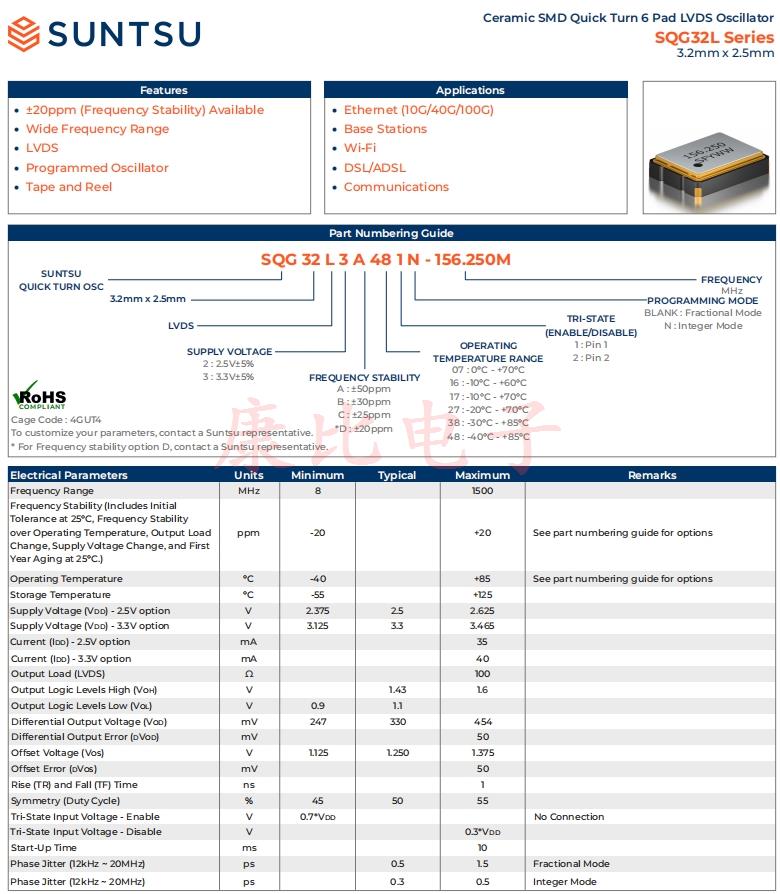

SQG32L 1有源晶振產品特點：±20ppm(頻率穩定性)可選，寬頻率范圍，LVDS，可編程振蕩器，磁帶和卷軸，產品主要應用范圍：基站，以太網(10G/40G/100G),基站,Wi-Fi,DSL/ADSL,通信應用程序等領域。松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器.

Part Number Manufacturer Package Logic Jitter Voltage Stability Operating Temp.
SQG32L2A161-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +60°C
SQG32L2A162-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +60°C
SQG32L2A171-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +70°C
SQG32L2A172-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +70°C
SQG32L2A271-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -20°C - +70°C
SQG32L2A272-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -20°C - +70°C
SQG32L2A381-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -30°C - +85°C
SQG32L2A382-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -30°C - +85°C
SQG32L2A481-8.000M-1500.000M Suntsu歐美晶振 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -40°C - +85°C
SQG32L2A482-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -40°C - +85°C
SQG32L2B071-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm 0°C - +70°C
SQG32L2B072-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm 0°C - +70°C
SQG32L2B161-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +60°C
SQG32L2B162-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +60°C
SQG32L2B171-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +70°C
SQG32L2B172-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +70°C
SQG32L2B271-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -20°C - +70°C
SQG32L2B272-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -20°C - +70°C
SQG32L2B381-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -30°C - +85°C
SQG32L2B382-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -30°C - +85°C
SQG32L2B481-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -40°C - +85°C
SQG32L2B482-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -40°C - +85°C
SQG32L2C071-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm 0°C - +70°C
SQG32L2C072-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm 0°C - +70°C
SQG32L2C161-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +60°C
SQG32L2C162-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +60°C
SQG32L2C171-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +70°C
SQG32L2C172-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +70°C
SQG32L2C271-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -20°C - +70°C
SQG32L2C272-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -20°C - +70°C
SQG32L2C381-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -30°C - +85°C
SQG32L2C382-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -30°C - +85°C
SQG32L2C481-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -40°C - +85°C
SQG32L2C482-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -40°C - +85°C
SQG32L3A071-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm 0°C - +70°C
SQG32L3A072-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm 0°C - +70°C
SQG32L3A161-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +60°C
SQG32L3A162-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +60°C
SQG32L3A171-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +70°C
SQG32L3A172-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +70°C
SQG32L3A271-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -20°C - +70°C
SQG32L3A272-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -20°C - +70°C
SQG32L3A381-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -30°C - +85°C
SQG32L3A382-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -30°C - +85°C
SQG32L3A481-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -40°C - +85°C
SQG32L3A482-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -40°C - +85°C
SQG32L3B071-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm 0°C - +70°C
SQG32L3B072-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm 0°C - +70°C
SQG32L3B161-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +60°C
SQG32L3B162-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +60°C
SQG32L3B171-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +70°C
SQG32L3B172-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +70°C
SQG32L3B271-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -20°C - +70°C
SQG32L3B272-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -20°C - +70°C
SQG32L3B381-8.000M-1500.000M Suntsu振蕩器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -30°C - +85°C
Suntsu有源晶體振蕩器提供通孔或表面貼裝封裝，有多種尺寸可供選擇。我們提供寬頻率范圍和許多不同的電壓和邏輯選項。晶體振蕩器是一種電子電路，它利用壓電材料振動晶體的機械共振來產生頻率非常精確的電信號。該頻率通常用于記錄時間，為數字集成電路提供穩定的時鐘信號，以及穩定無線電發射機和接收機的頻率。
