FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振，美國FOX晶振，?？怂咕д?，型號：FC3BA，(Former FXA3225B)系列晶振，編碼為：FC3BAEBDI40.0-T1石英晶振，頻率為：40.000MHz，頻率穩定性：±50ppm，頻率容差：±20ppm，負載電容：8pF，工作溫度范圍：-40℃至+125℃，耐高溫晶振，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，3225晶振，無源晶振，石英晶體諧振器，SMD晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。進口晶振，被廣泛應用于：移動通訊晶振，無線藍牙晶振，汽車電子晶振，車載控制器，航空電子晶振，安防設備等應用。

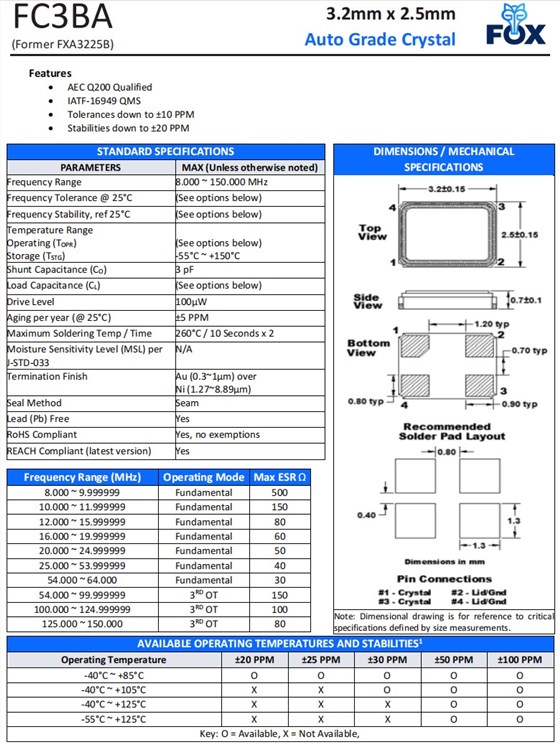

FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振,參數表
| PARAMETERS | MAX(unless otherwise noted) |
| Frequency Range | 40MHz |
| Frequency Tolerance @ 25ºC | (See options on page 2) |
| Frequency Stability, ref @ 25ºC | (See options below) |
| Temperature Range | |
| Operating (TOPR) | (see options below) |
| Storage (TSTG) | -55℃~ +150℃ |
| Shunt Capacitance (Co) | 3pF |
| Load Capacitance (Cl) | (See options on page 2) |
| Drive Level | 100µW |
| Aging per year | ±5 PPM |
| Maximum Soldering Temp / Time | 260ºC / 10 Seconds |
| Moisture Sensitivity Level (MSL) | 1 |
| Termination Finish | Au |
| Seal Method | Seam Seal |
| Lead (Pb) Free | Yes |
| RoHS Compliant | No Exemptions |

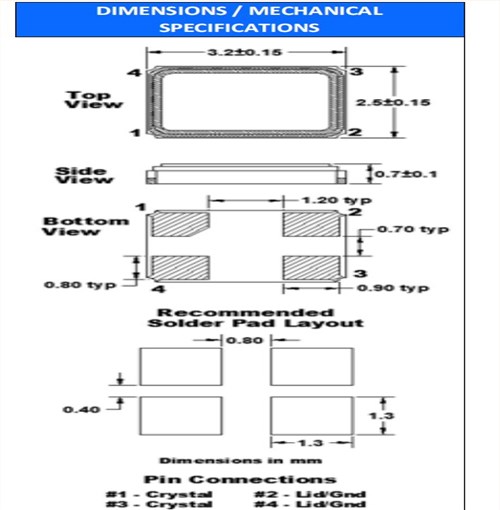

FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振,尺寸圖
| 產品編碼 | 品牌 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FC3BABBKM20.0-T3 | Fox晶振 | FC3BA | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACAGI16.0-T3 | Fox晶振 | FC3BA | 16 MHz | ±100ppm | ±30ppm | 12 pF |
| FC3BACALI16.0-T3 | Fox晶振 | FC3BA | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| FC3BACBDI16.0-T3 | Fox晶振 | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox晶振 | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox晶振 | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox晶振 | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox晶振 | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox晶振 | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox晶振 | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox晶振 | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox晶振 | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI8.0-T1 | Fox晶振 | FC3BA | 8 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBGI12.0-T1 | Fox晶振 | FC3BA | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI24.0-T1 | Fox晶振 | FC3BA | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI25.0-T1 | Fox晶振 | FC3BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI40.0-T1 | Fox晶振 | FC3BA | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3VAEEGM50.0-T3 | Fox晶振 | FC3VA | 50 MHz | ±20ppm | ±20ppm | 12 pF |
