ECS-122.8-20-3X-EN-TR數據手冊|CSM-3X|12.288MHZ|SMD

產品簡介

ECS-122.8-20-3X-EN-TR數據手冊|CSM-3X|12.288MHZ|SMD，尺寸為7.6*4.1mm,頻率為12.288MHZ，美國ECS晶振，伊西斯晶振，無源晶體,石英晶振,石英晶體諧振器,石英貼片晶振，貼片無源晶振，SMD石英晶體，高質量晶振，低損耗晶振，筆記本電腦專用晶振，無線設備晶振，智能產品晶振，藍牙耳機晶振，ECS-250-20-3X-EN-TR無源晶體，ECS-270-20-3X-TR高品質晶振。

石英晶體諧振器產品主要應用范圍：筆記本電腦，無線設備，智能產品，藍牙耳機，移動電話等領域。ECS-122.8-20-3X-EN-TR數據手冊|CSM-3X|12.288MHZ|SMD.

產品詳情

PARAMETERS	CONDITIONS	CSM-3X			UNITS
		MIN	TYP	MAX
Frequency		12.000		40.000	MHz
Mode of Oscillation	Fundamental
Frequency Tolerance*	@+25°C			±30	ppm
Frequency Stability*	-10 ~ +70°C			±50	ppm
ShuntCapacitance	Co			7
Load Capacitance	SpecifyinP/N	10	20	Series	pF
Drive Level	DL			100	μW
OperatingTemperature*	Topr	-10		+70	°C
StorageTemperature	Tstg	-40		+85	°C
Aging(First Year)	@+25°C ±3°C			±5	ppm

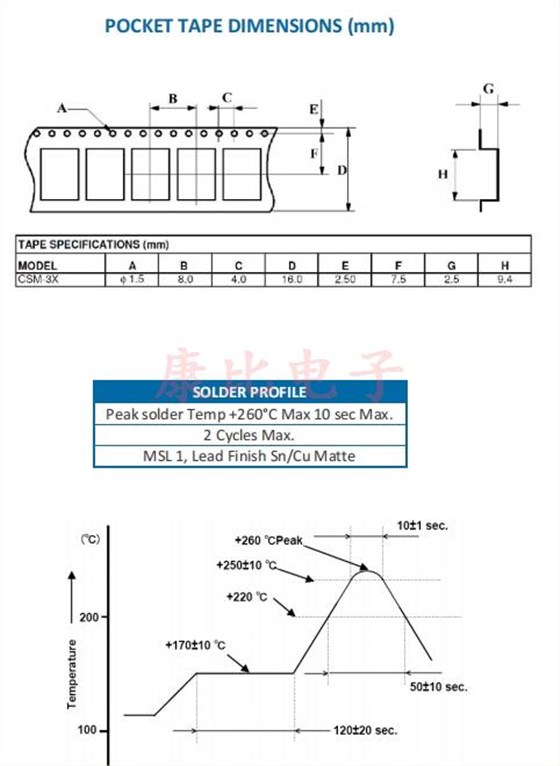

ECS-122.8-20-3X-EN-TR數據手冊|CSM-3X|12.288MHZ|SMD 尺寸圖

ECS-122.8-20-3X-EN-TR晶振特點：

CSM-3X是小型低輪廓電阻焊類型SMD石英晶體。減少cm-7x(HC-49USX)的占地面積SMD)減少50%。

更多相關ECS晶振型號

原廠編碼	廠家	型號	頻率	工作溫度
ECS-250-20-3X-TR	ECS晶振	CSM-3X	25MHz	-10°C ~ 70°C
ECS-120-20-3X-TR	ECS晶振	CSM-3X	12MHz	-10°C ~ 70°C
ECS-160-20-3X-TR	ECS晶振	CSM-3X	16MHz	-10°C ~ 70°C
ECS-143-20-3X-TR	ECS晶振	CSM-3X	14.31818MHz	-10°C ~ 70°C
ECS-147.4-20-3X-TR	ECS晶振	CSM-3X	14.7456MHz	-10°C ~ 70°C
ECS-184-20-3X-TR	ECS晶振	CSM-3X	18.432MHz	-10°C ~ 70°C
ECS-200-20-3X-TR	ECS晶振	CSM-3X	20MHz	-10°C ~ 70°C
ECS-245.7-20-3X-TR	ECS晶振	CSM-3X	24.576MHz	-10°C ~ 70°C
ECS-286.3-20-3X-EN-TR	ECS晶振	CSM-3X	28.63636MHz	-40°C ~ 85°C
ECS-300-20-3X-EN-TR	ECS晶振	CSM-3X	30MHz	-40°C ~ 85°C
ECS-400-20-3X-EN-TR	ECS晶振	CSM-3X	40MHz	-40°C ~ 85°C
ECS-160-20-3X-EN-TR	ECS晶振	CSM-3X	16MHz	-40°C ~ 85°C
ECS-122.8-20-3X-EN-TR	ECS晶振	CSM-3X	12.288MHz	-40°C ~ 85°C
ECS-147.4-20-3X-EN-TR	ECS晶振	CSM-3X	14.7456MHz	-40°C ~ 85°C
ECS-250-20-3X-EN-TR	ECS晶振	CSM-3X	25MHz	-40°C ~ 85°C
ECS-120-20-3X-EN-TR	ECS晶振	CSM-3X	12MHz	-40°C ~ 85°C
ECS-200-20-3X-EN-TR	ECS晶振	CSM-3X	20MHz	-40°C ~ 85°C
ECS-135.6-20-3X-TR	ECS晶振	CSM-3X	13.56MHz	-10°C ~ 70°C
ECS-196.6-20-3X-TR	ECS晶振	CSM-3X	19.6608MHz	-10°C ~ 70°C
ECS-184-20-3X-EN-TR	ECS晶振	CSM-3X	18.432MHz	-40°C ~ 85°C
ECS-286.3-20-3X-TR	ECS晶振	CSM-3X	28.63636MHz	-10°C ~ 70°C
ECS-270-20-3X-TR	ECS晶振	CSM-3X	27MHz	-10°C ~ 70°C
ECS-300-20-3X-TR	ECS晶振	CSM-3X	30MHz	-10°C ~ 70°C
ECS-130-20-3X-TR	ECS晶振	CSM-3X	13MHz	-10°C ~ 70°C
ECS-270-20-3X-EN-TR	伊西斯無源晶振	CSM-3X	27MHz	-40°C ~ 85°C
ECS-122.8-20-3X-TR	ECS晶振	CSM-3X	12.288MHz	-10°C ~ 70°C
ECS-143-20-3X-EN-TR	ECS晶振	CSM-3X	14.31818MHz	-40°C ~ 85°C
ECS-400-20-3X-TR	ECS晶振	CSM-3X	40MHz	-10°C ~ 70°C
ECS-135.6-20-3X-EN-TR	ECS晶振	CSM-3X	13.56MHz	-40°C ~ 85°C
ECS-200-CDX-0914	ECS晶振	CSM-3X	20MHz	-60°C ~ 105°C
