EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器

產品簡介

EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器，美國Ecliptek晶振，日蝕晶振，型號：EC26系列，編碼為：EC2600TS-66.000M TR，頻率：66.000MHz，電壓：3.3V，頻率穩定性：±100ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0mm封裝，四腳貼片晶振，石英晶振，SMD晶振，LVCMOS輸出晶振，有源晶振，石英晶體時鐘振蕩器。具有超小型，輕薄型，高品質，高精度，高性能，高可靠性等特點。應用于：通訊設備晶振，GPS定位晶振，導航儀晶振，數字視頻晶振，物聯網等應用。

產品詳情

EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器,參數表

品牌	Ecliptek日蝕晶振
型號	EC26
物料編碼	EC2600TS-66.000M TR
頻率	66MHz
頻率穩定性	±100ppm
輸出	LVCMOS
電源電壓	3.3V
工作溫度	-10℃至+70℃
尺寸	7.0x5.0mm

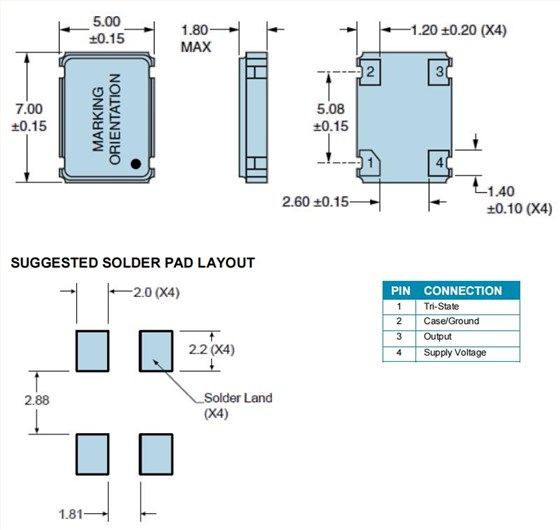

EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器,尺寸圖

產品編碼	品牌	系列	類型	頻率
EC2645TS-25.000M TR	Ecliptek晶振	EC26	XO (Standard)	25 MHz
EC2645TTS-33.000M TR	Ecliptek晶振	EC26	XO (Standard)	33 MHz
EC2600TS-40.000M TR	Ecliptek晶振	EC26	XO (Standard)	40 MHz
EC2620TS-25.000M TR	Ecliptek晶振	EC26	XO (Standard)	25 MHz
EC2645ETTS-33.333M TR	Ecliptek晶振	EC26	XO (Standard)	33.333 MHz
EC2620TS-12.000M TR	Ecliptek晶振	EC26	XO (Standard)	12 MHz
EC2620TS-50.000M TR	Ecliptek晶振	EC26	XO (Standard)	50 MHz
EC2600TS-66.000M TR	晶振廠家	EC26	XO (Standard)	66 MHz
EC2600TS-50.000M TR	Ecliptek晶振	EC26	XO (Standard)	50 MHz
EC2620TS-24.576M TR	Ecliptek晶振	EC26	XO (Standard)	24.576 MHz
EC2625ETTS-66.666M TR	Ecliptek晶振	EC26	XO (Standard)	66.666 MHz
EC2625ETTS-16.000M TR	Ecliptek晶振	EC26	XO (Standard)	16 MHz
EC2645TTS-27.000M TR	Ecliptek晶振	EC26	XO (Standard)	27 MHz
EC2645ETTTS-4.000M TR	Ecliptek晶振	EC26	XO (Standard)	4 MHz
EC2625ETTS-32.000M TR	Ecliptek晶振	EC26	XO (Standard)	32 MHz
EC2600ETTTS-50.000M TR	Ecliptek晶振	EC26	XO (Standard)	50 MHz
EC2600TS-24.576M TR	Ecliptek晶振	EC26	XO (Standard)	24.576 MHz
EC2645ETTTS-25.000M TR	Ecliptek晶振	EC26	XO (Standard)	25 MHz
EC2620TTS-100.000M TR	Ecliptek晶振	EC26	XO (Standard)	100 MHz
EC2645TS-20.000M TR	Ecliptek晶振	EC26	XO (Standard)	20 MHz
EC2625ETTS-50.000M TR	Ecliptek晶振	EC26	XO (Standard)	50 MHz
EC2625ETTTS-25.000M TR	Ecliptek晶振	EC26	XO (Standard)	25 MHz
EC2645ETTTS-18.432M TR	Ecliptek晶振	EC26	XO (Standard)	18.432 MHz
EC2600ETTTS-12.000M TR	Ecliptek晶振	EC26	XO (Standard)	12 MHz
EC2600TS-5.000M TR	Ecliptek晶振	EC26	XO (Standard)	5 MHz
EC2625TTS-75.000MTR	Ecliptek晶振	EC26	XO (Standard)	75 MHz
EC2625TS-48.000M TR	Ecliptek晶振	EC26	XO (Standard)	48 MHz
EC2645ETTTS-14.31818M TR	Ecliptek晶振	EC26	XO (Standard)	14.31818 MHz
EC2620TS-16.000M TR	Ecliptek晶振	EC26	XO (Standard)	16 MHz
EC2625TS-24.000M TR	石英晶振	EC26	XO (Standard)	24 MHz
EC2600TS-11.0592M TR	Ecliptek晶振	EC26	XO (Standard)	11.0592 MHz
EC2600ETTS-14.7456M TR	Ecliptek晶振	EC26	XO (Standard)	14.7456 MHz
EC2600TS-15.000M TR	Ecliptek晶振	EC26	XO (Standard)	15 MHz
EC2625TTS-64.000M TR	Ecliptek晶振	EC26	XO (Standard)	64 MHz
EC2645TTS-32.000M TR	Ecliptek晶振	EC26	XO (Standard)	32 MHz
EC2600TS-48.000M TR	Ecliptek晶振	EC26	XO (Standard)	48 MHz
EC2600ETTS-16.384M TR	Ecliptek晶振	EC26	XO (Standard)	16.384 MHz
EC2645ETTS-50.000M TR	Ecliptek晶振	EC26	XO (Standard)	50 MHz
EC2645ETTS-16.000M TR	Ecliptek晶振	EC26	XO (Standard)	16 MHz
EC2645ETTS-66.666M TR	Ecliptek晶振	EC26	XO (Standard)	66.666 MHz
EC2645TTS-106.250M TR	Ecliptek晶振	EC26	XO (Standard)	106.25 MHz
EC2625ETTS-100.000M TR	Ecliptek晶振	EC26	XO (Standard)	100 MHz
EC2600TS-120.000M TR	Ecliptek晶振	EC26	XO (Standard)	120 MHz
EC2645TTS-125.000M TR	Ecliptek晶振	EC26	XO (Standard)	125 MHz
EC2625TS-125.000M TR	Ecliptek晶振	EC26	XO (Standard)	125 MHz
EC2625ETTS-133.333M TR	Ecliptek晶振	EC26	XO (Standard)	133.333 MHz
EC2600ETTS-14.318M	Ecliptek晶振	EC26	XO (Standard)	14.318 MHz
EC2600ETTS-14.7456M	Ecliptek晶振	EC26	XO (Standard)	14.7456 MHz
EC2600ETTS-16.000M	Ecliptek晶振	EC26	XO (Standard)	16 MHz
EC2600ETTS-33.000M	Ecliptek晶振	EC26	XO (Standard)	33 MHz
EC2600ETTS-33.000M TR	Ecliptek晶振	EC26	XO (Standard)	33 MHz
EC2600ETTS-66.666M TR	Ecliptek晶振	EC26	XO (Standard)	66.666 MHz
